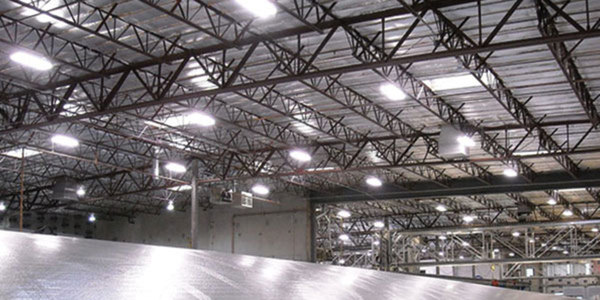

Typical Warehouse
This grouping of fixtures includes high-quality and affordable options for the typical warehouse open and aisle areas. All fixture light sources are LED and some include on-board controls.
Want to convert these products into a project?
Click the below button and one of our sales associates will assist you.
Contact Architectural Lighting AllianceApplication Examples
Aisles
Pending
| Image | Name | Description | Manufacturer | Qty | Product Type | Part Number | Voltage | Dimming Protocol | Mounting | Wattage | Lead Time (Est.) | Notes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MS8 |
Intended for use in retail stores, warehouses and manufacturing applications where high lumen package in a compact fixture design is required. Ideal for mounting heights up to 35 feet in controlled ambient facilities. Recommended for climate control spaces.ConstructionChannel and louvers are formed from cold-rolled, 20-gauge steel. Designed for simple servicing, louver assembly hinges remain attached and hinge down providing easy access into the optical system. Convenient access plate located on the back of the the channel for easy access to wiring components.Finish: High-gloss, baked white enamel finish. Five-stage, iron phosphate pretreatment ensures superior paint adhesion and rust resistance.OpticsThe Narrow Distribution (ND) includes a parabolic reflector system to provide high vertical and good horizontal illumination for aisle or rack lighting. The Wide Distribution (WD) is ideal for general area lighting at higher mounting heights or where widespread distribution is preferred. Both distributions are available with white straight blade louver for additional shielding and brightness control. Uplight component softens ceiling appearance to reduce the "cavern effect".ElectricalThermally protected, resetting, Class P, HPF, Non PCB, UL listed, and Canadian Certified. A+ sound rated electronic ballast. AWN TFN or THHN wire used throughout, rated for required temperatures.Sockets feature rotating collars and enclosed contacts.InstallationA variety of mounting arrangements are available including tong hangers, aircraft cables, and stems. Suitable for mounting in continuous row or individual mounting. End caps include knockouts for through wiring and fixture attachment in row mounting applications. | Lithonia Lighting | 0 | Linear Wall/Surface | -- | -- | -- | -- | -- | -- | -- |
|
IBZ |
The I-BEAM® IBZ is an energy-saving fluorescent high bay solution that is an ideal one-for-one replacement of common metal halide high bay systems. Its configurable design supports many options and accessories that would satisfy almost any high bay application. Typical applications include manufacturing, warehousing, institutional and retail facilities. Certain airborne contaminants can diminish integrity of acrylic. Refer to Acrylic Environmental Compatibility tables for suitable uses.ConstructionThe configurable design of the I-BEAM IBZ allows wireguards, lenses, tandem kits and sensors to be quickly installed in either our factory or in the field. The Integrated Modular Plug (IMP) feature further enhances the flexibility by allowing plug-and-play components such as sensors and photocells.OpticsThe optics are engineered to be both highly efficient and manage the heat generated by the lamps. The thermal vents convent heat rapidly to reduce dirt depreciation by pulling heat and contaminates out of the reflector and away from the lamps.ElectricalUsing the most advanced ballast technology available, the Cool Running Plus™ Technology ballast is integrated into the T5HO IBZ System to provide reliable operation in ambient environments up to 155°F (68°C). This ballast features independent lamp operation, thermal response to regulate the ballast case temperature, and an enhanced two-level switch mode. The Cool Running Plus™ Technology ballast may be paired with optional energy-saving lamps saves an additional 5W per T5HO lamp. Both the Cool Running Plus™ Technology ballast and energy-saving lamps will be warranted for 5 years providing an industry-best system warranty. | Lithonia Lighting | 0 | Highbay & Lowbay | -- | -- | -- | -- | -- | -- | -- |
Controls
Pending
| Image | Name | Description | Manufacturer | Qty | Product Type | Part Number | Voltage | Dimming Protocol | Mounting | Wattage | Lead Time (Est.) | Notes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GR 2400 Relay Panel |
The GR 2400 system is a 100% digital solution to lighting control. Panels and switches daisy-chain together, using Cat. 5 patch cable with RJ45 connectors in any sequence. Up to 127 total devices. 32-channel, 365-day/astronomical time clock. Large display (21 x 8 characters) acts as programming interface for the entire system. Non-volatile memory holds all programming indefinitely. Ten-year battery back-up for time-of-day. May control mixed voltages (i.e., 120 V, 277 V) May control normal or emergency power Ideal for all applications Manual override of individual relays, zones or entire panel Link up to 127 addresses of digital devices via Cat. 5 patch cable with RJ45 connectors | Archived | 0 | Control Systems | -- | -- | -- | -- | -- | -- | -- |
|
XPoint Wireless CMRB Sensor and Controller |
XPoint Wireless CMRB occupancy sensor is a relay, occupancy sensor and photo controller all in one device. The XPA CMRB provides a cost effective solution for high bay applications to provide control, occupancy detection and daylight harvesting per individual fixture plus the added benefits of intelligent network communication including group control, current monitoring, and driver/lamp outage detection. The XPA CMRB can be quickly installed on any fixture with a standard ½” KO for field or factory installation. The XPA CMRB sensor is a point of control for a flexible wireless network in which lights can be easily configured to respond to one or more priorities. The system achieves energy savings not previously possible with control restricted to electrical circuits. XPoint Wireless utilizes the Adura® Wireless Protocol for robust communication by forming a self-healing, adaptive mesh network that maintains connectivity even in difficult environments. Individually addressed Microcontroller with real time clock responds to the highest priority command Monitors/measures energy consumption of controlled lighting Non-volatile memory retains information during power failures Integrated internal antenna - no external antenna required Compliant with FCC Part 15 3 year warranty | Archived | 0 | Control Components | -- | -- | -- | -- | -- | -- | -- |
Open Areas
Pending
| Image | Name | Description | Manufacturer | Qty | Product Type | Part Number | Voltage | Dimming Protocol | Mounting | Wattage | Lead Time (Est.) | Notes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IBG High Bay |
The I-BEAM® family of LED high bays from Lithonia Lighting® is among the most recognized and respected brands in the industry, with a proven track record of value and performance. This legacy continues with the IBG LED. The versatile I-BEAM® IBG LED high bay boasts a single base platform design with a wide selection of options, taking IBG from basic applications to complex environments, including unconditioned spaces. The result is the maximum performance you need at the lowest possible cost.I-BEAM® IBG LED high bay is available with wired and wireless control options including an integrated SensorSwitchTM Haleon BTP sensor that provides remote programmability via Bluetooth® technology using the FREE VLP downloadable smartphone app. The Haleon sensor allows customers to customize occupancy detection, dimming, and daylight harvesting at the fixture level from their warehouse floor. Embedding wired or wireless nLight® controls further optimizes LED savings for customers today and scales with your space as it grows.Innovative Job Pack packaging now available for reduced waste and increased efficiency8,000 to 72,000 lumensStandard and narrow fixture housing optionsHigh-ambient options up 131°F (55°C)High-efficiency options greater than 180+ LPWNarrow, general, wide and focus distributionsSnap-fit IP5X dust-resistant diffuse lens standard3000K, 3500K, 4000K, 5000K; 80CRI (standard), 90CRI (option)120-480V, MVOLT, HVOLT0-10V dimmingEmbedded nLight® AIR wireless controls6kV surge protection, standardEmergency Drivers produce up to 4000 lumensRotatable outer light modules | Lithonia Lighting | 0 | Highbay & Lowbay, Build America Buy America, DLC, Buy American Act, Buy America | -- | -- | -- | -- | -- | -- | -- |
|
|
IBZ |
The I-BEAM® IBZ is an energy-saving fluorescent high bay solution that is an ideal one-for-one replacement of common metal halide high bay systems. Its configurable design supports many options and accessories that would satisfy almost any high bay application. Typical applications include manufacturing, warehousing, institutional and retail facilities. Certain airborne contaminants can diminish integrity of acrylic. Refer to Acrylic Environmental Compatibility tables for suitable uses.ConstructionThe configurable design of the I-BEAM IBZ allows wireguards, lenses, tandem kits and sensors to be quickly installed in either our factory or in the field. The Integrated Modular Plug (IMP) feature further enhances the flexibility by allowing plug-and-play components such as sensors and photocells.OpticsThe optics are engineered to be both highly efficient and manage the heat generated by the lamps. The thermal vents convent heat rapidly to reduce dirt depreciation by pulling heat and contaminates out of the reflector and away from the lamps.ElectricalUsing the most advanced ballast technology available, the Cool Running Plus™ Technology ballast is integrated into the T5HO IBZ System to provide reliable operation in ambient environments up to 155°F (68°C). This ballast features independent lamp operation, thermal response to regulate the ballast case temperature, and an enhanced two-level switch mode. The Cool Running Plus™ Technology ballast may be paired with optional energy-saving lamps saves an additional 5W per T5HO lamp. Both the Cool Running Plus™ Technology ballast and energy-saving lamps will be warranted for 5 years providing an industry-best system warranty. | Lithonia Lighting | 0 | Highbay & Lowbay | -- | -- | -- | -- | -- | -- | -- |
|
IBL |
The I-BEAM IBL LED luminaire represents the best of our LED technologies and our most popular high bay product. The result is a high-performance, quality, configurable LED luminaire that is an ideal one-for-one replacement of conventional high bay systems such as HID and fluorescent. Applications include warehousing, light manufacturing and other large indoor spaces with mounting heights up to 60' and ambient temperatures up to 131°F (55°C).Increase your R.O.I. with controls!The IBL LED is available with integrated controls and sensor options (occupancy, photo & dimming) to reduce energy costs and help extend the life of the fixture. Large indoor spaces with mounting heights up to 60' and ambient temperatures up to 131°F (55°C).Installation Suitable for suspension by chain, cable, surface-mounting bracket, hook monopoint or single (pendant) monopoint. Surface mounting is not recommended without optional surface mounting bracket. To maintain high ambient listing, fixture should be mounted at a minimum plenum height of 24".Warranty Five-year limited warranty. Complete warranty terms located at Customer Resources: Terms and Conditions. | Lithonia Lighting | 0 | Buy America, Highbay & Lowbay, Build America Buy America, Buy American Act, DLC | -- | -- | -- | -- | -- | -- | -- |
SAMPLE BJ SPACE
Pending
| Image | Name | Description | Manufacturer | Qty | Product Type | Part Number | Voltage | Dimming Protocol | Mounting | Wattage | Lead Time (Est.) | Notes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XIB High Bay |
The XIB LED High Bay is designed and engineered to withstand medium-duty industrial environments. XIB is a fully sealed, wet location high bay in a linear form factor designed for warehousing, large indoor spaces, and gymnasiums as well as demanding environments such as manufacturing, service bays, packaging, ice rinks, under canopy, cold storage, natatoriums, and food service. The XIB is durable and powerful but maintains an aesthetic appeal that makes it suitable for even retail and commercial applications. Optimize the next generation XIB LED high bay with best-in-class controls. Ordering the XIB with embedded controls supports code compliance and achieves energy and labor savings as well as rebate potential. nLight® networked lighting controls is the preferred controls solution for industrial high bays in hard to reach places. Listings 55°C listed standard with full light output10kV surge protection, standardDLC Premium listed with configurations up to 170 LPWIP65 Rated to protect electrical components and LEDsNSF2 Splash Zone for food service Key Specs 12,000 to 42,000 lumens L90 at 60,000 hours 2’ and 4’ lengths Rigid cast aluminum housing Integrated emergency battery pack available Glass/Acrylic and narrow/wide distribution lenses available Suspended, pendant and surface mounting options available Embedded controls maintain IP65 rating | Lithonia Lighting | 16 | Buy America, Build America Buy America, Highbay & Lowbay, Buy American Act, DLC | XIB | -- | -- | -- | -- | -- | LIKE IT |
