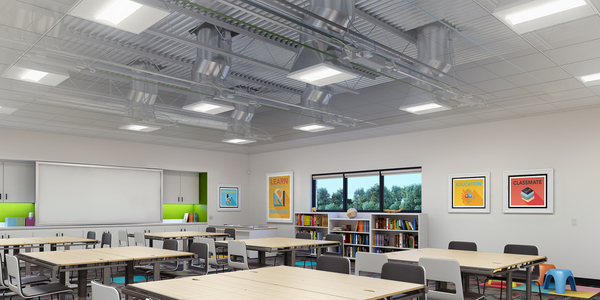

Typical Classroom
This application consists of classroom products for every budget. Linear suspended, direct/indirect products for a more architectural look, linear recessed options for a clean simple design and troffer fixtures for classrooms on a budget. This template also includes a complete standalone classroom controls solution.
Want to convert these products into a project?
Click the below button and one of our sales associates will assist you.
Contact Architectural Lighting AllianceApplication Examples
Architectural Troffers
Pending
| Image | Name | Description | Manufacturer | Qty | Product Type | Part Number | Notes |
|---|---|---|---|---|---|---|---|
|
RTLED |
The RTL combines digital LED lighting and controls technologies with patented high performance optical design to deliver the most advanced luminaire for general ambient lighting applications. The high efficacy light engine delivers long life and excellent color, ensuring a superior quality lighting installation that is highly efficient and sustainable. | Lithonia Lighting | 0 | Chicago Plenum, Troffer, DLC, Buy America, Buy American Act | -- | -- |
|
WHSPR LCTR Tunable White Troffer |
Whisper LED has joined the Mainstream Dynamic family of luminaires with two Tunable White ranges in the same beautiful and distinguished form. Distributed intelligence enables the previously unachievable - independent control of color temperature and intensity. | Mark Architectural Lighting | 0 | Troffer, RGB & Color Tuning, Quick Ship, Buy America, DLC, Chicago Plenum, Build America Buy America Act, Buy American Act | -- | -- |
|
2ESL4 Troffer |
The ESL Series offers a high-performance LED energy-saving alternative to fluorescent and parabolic fixtures. Using advanced LEDs and superior luminaire design, the ESL delivers even illumination and reduced glare, while eliminating numerous expensive lamp changes. Multiple lumen packages, an eldoLED driver, and optional nLight® integrated controls provide exceptional value; ideal for retail, educational, and commercial applications. | Lithonia Lighting | 0 | Chicago Plenum, Troffer, DLC, Buy American Act, Buy America | -- | -- |
|
BLT Series Tunable White |
Lithonia Lighting® brings lighting adaptability in an easy-to-use plug & play platform. With simple elegance, nLight® delivers dimming and color tuning effects at the touch of a button. Tunable White is perfect in classrooms and educational settings as it allows the light color temperature to be adjusted to the optimal light level for student tasks such as reading or test taking. BLT is compatible with the DC2DC architecture | Lithonia Lighting | 0 | Troffer | -- | -- |
|
BLTX Surface Light |
Get all the great features of the Lithonia Lighting BLT Series luminaire now available as a surface mount option. Expand your lighting options to accommodate hard surface installations or other applications requiring surface mount with the complementary BLTX product. The BLTX offers a clean design, shallow fixture-depth for easy installation, plug-n-play control options and reliability backed by Lithonia Lighting--all at an attractive price--the BLT Series is your best-in-value ambient lighting solution for commercial projects. | Lithonia Lighting | 0 | Troffer, DLC | -- | -- |
Controls
Pending
| Image | Name | Description | Manufacturer | Qty | Product Type | Part Number | Notes |
|---|---|---|---|---|---|---|---|
|
nBACKBONE |
This product series has been discontinued,. Please see the suggested products below or contact your local sales representative. | nLight | 0 | Control Systems | -- | -- |
|
nLight® UNITOUCH |
The nLight® UNITOUCH is an integrated touchscreen wall switch providing seamless control of multiple luminaires and devices on the nLight lighting controls platform through a single piece of glass, and wirelessly through the myPersonify mobile app. Blending modern design and an enhanced user experience, the nLight® UNITOUCH is ideal for commercial, higher education, hospitality, and retail applications. | nLight | 0 | Control Components, DLC | -- | -- |
|
RPODB Switch |
The nLight® AIR rPODB is a wireless, battery-powered wall switch including toggle and/or raise lower features with optional multi-pole control. It provides a user with local control of a lighting zone. A true wire-free switch, these single gang decorator style devices have soft-click buttons, and a green LED indicator for each button. The rPODB wall switches communicate wirelessly with other nLight AIR devices. This product has limited inventory and all configurations may not be available. To verify availability, please contact your local sales representative or if you are an authorized distributor, please login to ADC to confirm the available inventory before placing an order. | nLight | 0 | Control Components, DLC | -- | -- |
|
rCMS |
The rCMS family of nLight AIR-enabled wireless ceiling/surface mount occupancy sensors provide a range of sensor solutions for applications with finished ceilings (e.g. ceiling tiles, sheetrock, plaster). The rCMS family sensors utilize digital Passive Infrared (PIR) detection and are available with several lens options, providing flexibility for multiple mounting height and coverage pattern requirements. Dual technology occupancy detection can also be added as an option for applications where occupants are stationary for long periods of time. All sensors have integrated on/off photocells, with automatic daylight harvesting/dimming control standard. Additionally, the rCMS family sensors are also available with an optional auxiliary low voltage relay for simple integration with a BMS system or other building system. The rCMS family sensors are powered by an nLight AIR Power Pack (rPP20) or by a 24V DC supply (PS150). rCMS family sensors typically communicate with one or more nLight AIR-enabled fixtures or power packs to enable control of fixtures individually or in groups. As part of the nLight AIR wireless controls family, the xxx uses a 900MHz communication frequency that easily penetrates obstructions and its five-tier security architecture helps building owners and occupants rest easy. To learn more about nLight AIR wireless controls please contact your local lighting representative or visit the nLight AIR systems page. Features: • Digital PIR detection • Integrated, dimming photocell standard (disabled by default) — Photocell views down through sensor lens and when enabled provides two selectable modes of operation - On/Off mode: Photocell has full on/off control during periods of occupancy - Inhibit mode: Photocell can prevent lights from turning on if adequate daylight is available, but cannot turn lights off • Optional auxiliary low voltage solid-state relay (AR option) for dry contact output• LED status indicator • Adjustable settings (e.g. occupancy time delays, photocell set-points) via CLAIRITY™ + mobile application or SensorView software application • Powered by 24V DC from rPP20 or nLight PS 150 power supply • Robust five-tier security architecture delivers peace of mind for building owners, managers, and IT departments • Easy integration with the nLight ECLYPSE® via nLight adapter for more advanced control strategies like time-based scheduling, demand response and to connect with BACnet™, cloud-based applications, and remote control capabilities • CLAIRITY™+ mobile application configuration makes configuration easy - no specialized tools or software to learn | nLight | 0 | Control Components, DLC | -- | -- |
General Troffers
Pending
| Image | Name | Description | Manufacturer | Qty | Product Type | Part Number | Notes |
|---|---|---|---|---|---|---|---|
|
GT8 |
Complete selection of specification premium air-handling luminaires recommended for all recessed general illumination applications.ConstructionInnovative low-profile design optimized around T8 lamps and low-profile electronic ballasts.Hemmed sides provide smooth edges for easy handling during installation.Standard steel door frame features precise flush mitered corners and spring- action latches.Unique design delivers a premium extruded appearance.Housing and door frame interface provides a superior mechanical light seal without the use of foam gasketing.Improved performance – higher fixture efficiency.Integral T-bar safety clips are standard – no need to install separate clips.Aluminum door frames available, flush or regressed.Compatible with most ceiling types. Field trim modification kits also available. | Lithonia Lighting | 0 | Troffer | -- | -- |
|
ES8P |
This product webpage has been discontinued, please contact your sales local representative. | Lithonia Lighting | 0 | Troffer | -- | -- |
|
Gtb |
GTB | Eclipse Lighting | 0 | Troffer, Made In America, Buy America, Buy American Act | -- | -- |

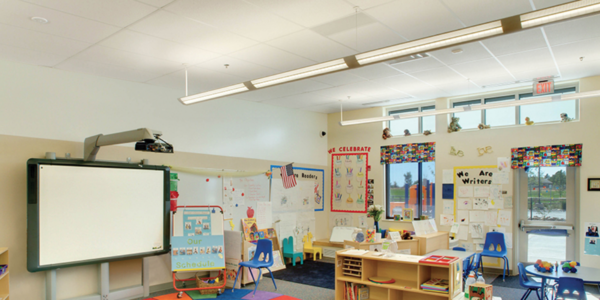

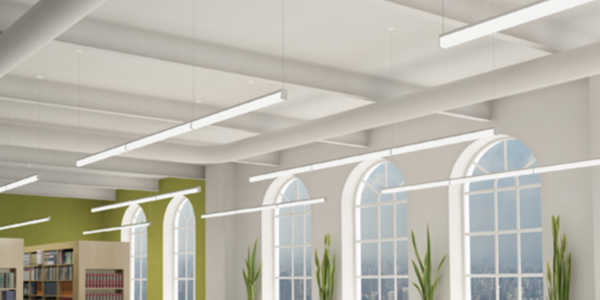

Linear Suspended
Pending
| Image | Name | Description | Manufacturer | Qty | Product Type | Part Number | Notes |
|---|---|---|---|---|---|---|---|
|
Cerra 7 Lightvent |
This product webpage has been discontinued, please see the suggested products below or contact your local sales representative.Cerra 7 Lightvent combines open louvers and partial perforation for high-performance lighting and perforated style.With up to 15% downlighting, Cerra 7 Lightvent is ideal for enhanced workplane illumination. The sides of the crescent shaped housing are perforated, creating an even luminosity along the length of the housing.Bathe interior spaces with soft, glare-free light from this efficient, attractive luminaire. | Peerless | 0 | Linear Suspended | -- | -- |
|
100 Linear Suspended LED |
4 inch suspended ceiling mount luminaire for absolute minimal visual impact. Easily installed internal LED tray assembly with integral driver. Snap-in satin opal diffuser. Powdercoat painted white – RAL 9010. 48” suspension cable, standard. | Inter-lux | 0 | Linear Suspended, Buy American Act | -- | -- |
|
Slot 4 LED PSW |
The SLOT LED family combines modern aesthetic elegance with unequalled performance and energy efficiency, design flexibility, seamless controls integration, and the service and support of an industry leader. Three widths, recessed, pendant, surface, and wall. In short, everything you need to light your imagination. | Mark Architectural Lighting | 0 | Linear Wall/Surface, Linear Suspended | -- | -- |
|
Cerra 10 ID |
Cerra 10 I/D – offering the highest percentage of downlighting in the Cerra family at 20% or greater – is ideal for use in schools and other buildings requiring high-performance lighting at budget-friendly prices. This, our lowest cost indirect-direct luminaire, provides an even gradient of light that promotes attentiveness while battling red ink. This is a highly efficient luminaire that’s well versed in economics. There are reasons so many teachers prefer Cerra 10 I-D for lighting the classroom. The sturdy, vandal-resistant blade baffle is just one of them.Cerra 10 I/D – offering the highest percentage of downlighting in the Cerra family at 20% or greater – is ideal for use in schools and other buildings requiring high-performance lighting at budget-friendly prices.This, our lowest cost indirect-direct luminaire, provides an even gradient of light that promotes attentiveness while battling red ink. This is a highly efficient luminaire that’s well versed in economics.There are reasons 9 out of 10 teachers prefer Cerra 10 I-D for lighting the classroom. The sturdy, vandal-resistant blade baffle is just one of them. 4ft, 8ft & 12ft Sections Parabolic Louver Textured White or Custom Finish Corners & Tenons Variable Distribution Options Efficiency: 47-93% | Peerless | 0 | Linear Wall/Surface | -- | -- |
