Professional Lighting Services
Template Details
Clean Room
Selections for clean room spaces in buildings.
Want to convert these products into a project?
Click the below button and one of our sales associates will assist you.
Contact Professional Lighting ServicesApplication Examples
A - Recessed
Pending
| Image | Name | Description | Manufacturer | Qty | Product Type | Part Number | Notes |
|---|---|---|---|---|---|---|---|
|
CLQ |
The CLQ is an economical clean room flat panel suitable for ISO class 5-9 positive pressure clean rooms. Selectable CCT and Wattage allow the color and lumen output to accommodate the various needs of clean room applications. Back lit design fully illuminates the flat panel, eliminating hot spots. | Advantage Environmental Lighting | 0 | Luminous Panels, Clean Room | -- | -- |
|
CLP | CLEAN ROOM TOP ACCESS TROFFER |
The CLP is 600lb load tested to reduce the hazard of foot traffic. One piece overlapping door provides easy cleaning and air-tight integrity of luminaire. Optional Food Zone/Non-Contact listing, ideal for food processing applications. Easy opening using rotary latches and a full length piano hinge | Advantage Environmental Lighting | 0 | Clean Room, Troffer | -- | -- |
|
CLRL | LED TUBE CLEAN ROOM BACK ACCESS TROFFER |
The CLRL is enclosed and gasketed to protect against infiltration of particles and airborne bacteria. The sealed housing and back door frame allows relamping without contamination of the clean areas. The CLRL is available in 1x4, 2x2, and 2x4 sizes. | Advantage Environmental Lighting | 0 | Clean Room, Troffer | -- | -- |
|
CLDF |
The CLDF is an IP65, Wet location, IC-rated luminaire which provides a cost-effective LED clean room lighting solution. Gasketed housing and door frame create a sealed enclosure. The CLDF is available in 1x2, 1x4, 2x2, and 2x4 sizes. Available options such as anti-microbial paint, 90 CRI, MILSTD 461G compliant, and 12W emergency driver. Suitable for biosafety labs rated BSL 1 and 2 (inset doorframe) and biosafety labs rated BSL 3 and 4 (overlap doorframe). Suitable for Class 1/ISO 3 Cleanrooms. For use in insulated ceilings. NSF/ANSI 2 Food Zone, Splash Zone and Non-Food Zone Applications. | Advantage Environmental Lighting | 0 | Clean Room, Troffer, Made In America | -- | -- |
|
CLDFR |
The CLDFR is an IP65, Wet location, IC-rated luminaire featuring a combination of 630nm red and white LEDs for vivarium applications. Gasketed housing and door frame create a sealed enclosure. The CLDF is available in 1x2, 1x4, 2x2, and 2x4 sizes. Available options such as anti-microbial paint, 90 CRI, MILSTD 461G compliant, and 12W emergency driver. Suitable for biosafety labs rated BSL 1 and 2 (inset doorframe) and biosafety labs rated BSL 3 and 4 (overlap doorframe). Suitable for Class 1/ISO 3 Cleanrooms. For use in insulated ceilings. NSF/ANSI 2 Food Zone, Splash Zone and Non-Food Zone Applications. | Advantage Environmental Lighting | 0 | Harsh Environments, Clean Room, Luminous Panels, Made In America | -- | -- |
|
CLU |
The CLU is a narrow spectrum recessed flange LED luminaire. Available with amber, white, or amber and white LEDs. With a narrow spectrum 570nm amber LED circuit, the CLU is able to provide highpurity light without UV for various applications. The high-CRI white LED circuit provides accurate color rendition at a high output. | Advantage Environmental Lighting | 0 | Luminous Panels, Made In America, Clean Room | -- | -- |
|

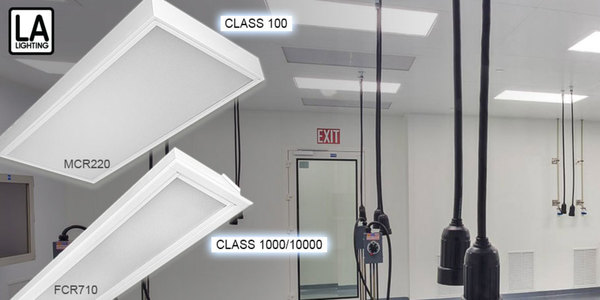

FCR210 - Class 100 Flanged Cleanroom Luminaire |
Application: Clean Room, Sealed Ceiling Areas, Commercial Features • 0-10V dimming driver standard • Supports California Title 24 compliance | LA Lighting | 0 | Buy America, Clean Room, Made In America, Buy American Act, Build America Buy America Act, RGB & Color Tuning | -- | -- |
B - Surface Ceiling
Pending
| Image | Name | Description | Manufacturer | Qty | Product Type | Part Number | Notes |
|---|---|---|---|---|---|---|---|
|
CLE |
The CLE is a surface mount IC-rated luminaire that provides a costeffective LED clean room lighting solution. Gasketed housing and door frame create a sealed enclosure. The CLE is available in 1x4, 2x2, and 2x4 sizes. Available options such as anti-microbial paint, and wet location. MILSTD 461G available, NSF listed, Red and Green LED option available. Suitable for biosafety labs rated BSL 1 and 2. Suitable for Class 1/ISO 3 Cleanrooms. For use in wet locations (optional), insulated ceilings. NSF/ANSI 2 Food Zone, Splash Zone and Non-Food Zone Applications. | Advantage Environmental Lighting | 0 | Luminous Panels, Clean Room, Made In America | -- | -- |
|
CLB |
The CLB Series is an IP Rated Mini Wash Down LED Clean Room High Bay luminaire. It is compact for tight areas and boasts a gasketed enclosure that is completely dust and moisture resistant. The CLB utilizes state-of-the-art LED technology to deliver the highest possible efficiency in the lighting industry. | Advantage Environmental Lighting | 0 | Clean Room, Made In America, Highbay & Lowbay | -- | -- |
|
CLA |
The CLA Series is an IP Rated Wash Down LED Clean Room High Bay luminaire. It boasts a gasketed enclosure that is completely dust and moisture resistant. The CLA utilizes state-of-the-art LED technology to deliver the highest possible efficiency in the lighting industry. | Advantage Environmental Lighting | 0 | Made In America, Clean Room, Harsh Environments, Highbay & Lowbay | -- | -- |
|
CLF |
The CLF is a low-profile, architecturally designed wall-mounted luminaire built to meet the demands of today's clean room facilities. The CLF provides optimal ambient light with due to its specially designed optics. The CLF LED is designed for use in healthcare facilities, specially for use in patient rooms to facilitate all tasks required by both patient and medical professional. | Advantage Environmental Lighting | 0 | Made In America, Clean Room, Linear Wall/Surface | -- | -- |
|
CLG |
The CLG LED Covered Strip Luminaire is designed to deliver general, ambient lighting in a variety of settings. The CLG has a high-efficacy, which provides long life and uniform illumination. The versatility of our CLG ensures it is the perfect choice for both new construction and retrofit applications. | Advantage Environmental Lighting | 0 | Made In America, Clean Room, Industrial & Strip | -- | -- |
|
CLN |
The CLN Series is a Clean Room LED Vapor Tight, gasketed enclosure that is completely dust and moisture resistant. The CLN utilizes state-of-the-art LED technology to deliver the highest possible efficiency in the lighting industry. | Advantage Environmental Lighting | 0 | Clean Room, Harsh Environments, Made In America, Wrap | -- | -- |
|
TDC100 - Class 100 Teardrop Luminaire |
Application: Clean Room, Retail, Commercial Features • Class 100 Clean Room Luminaire • 0-10V dimming driver standard • Supports California Title 24 compliance | LA Lighting | 0 | Linear Wall/Surface, Clean Room, Buy American Act, Made In America, Buy America, Build America Buy America Act, RGB & Color Tuning | -- | -- |
C - Surface Wall
Pending
| Image | Name | Description | Manufacturer | Qty | Product Type | Part Number | Notes |
|---|---|---|---|---|---|---|---|
|
CLM |
The CLM LED is suitable for use in clean room environment. The CLM utilizes one piece clamshell housing as well as security lensing and stainless steel fasteners. The CLM is ideal for clean room environments technical and biomedical labs, food processing/testing centers and pharmaceutical labs. UL listed for damp locations. Available with downlight and uplight, or downlight/uplight only. Uniform design allows fixture with only downlight or only uplight option to be mounted to accommodate both. | Advantage Environmental Lighting | 0 | Clean Room, Linear Wall/Surface, Made In America | -- | -- |
|
CLWM Wall Mount |
A range of small, square and rectangular wall mounted luminaires with options of upward or downward light distributions. Ideal to illuminate the wall and surfaces in front of wall and for light accents on vertical surfaces using high efficiency LED’s. The CLWM is designed for indoor and outdoor applications and provides a clean, visually appealing solution for small, unobtrusive wall mounted luminaires. This luminaire is available in 2 different sizes and in combinations of down, up or up/down light distributions. The CLWM have a decorative spike option for added lighting effects. The CLWM mounts over a 2”x4” switchbox mounted horizontally. Added securing holes are provided to secure the luminaire to the wall surface. Frosted or clear lenses are available | Advantage Environmental Lighting | 0 | Step & Marker, Clean Room | -- | -- |
|
CLSM SURFACE MOUNT |
A range of small, square and rectangular surface mounted luminaires with options ideal to illuminate the wall and surfaces in front of wall and for light accents on vertical surfaces using high efficiency LED’s. The CLCM is designed for indoor and outdoor applications and provides a clean, visually appealing solution for small, unobtrusive wall mounted luminaires. | Advantage Environmental Lighting | 0 | Step & Marker, Clean Room | -- | -- |
D - Corner Mount
Pending
| Image | Name | Description | Manufacturer | Qty | Product Type | Part Number | Notes |
|---|---|---|---|---|---|---|---|
|
CLS |
The CLS Series is an architecturally designed surface mount LED fixture suitable for clean room applications | Advantage Environmental Lighting | 0 | Linear Wall/Surface, Clean Room, Made In America | -- | -- |
E - Exit
Pending
| Image | Name | Description | Manufacturer | Qty | Product Type | Part Number | Notes |
|---|---|---|---|---|---|---|---|
|
CLI | EXIT LED CLEAN ROOM |
624 nm Red or 527 nm Green LED light source. Electrical components mounted to removable high impact, injection molded polycarbonate chassis. | Advantage Environmental Lighting | 0 | Exit & Emergency, Clean Room | -- | -- |
