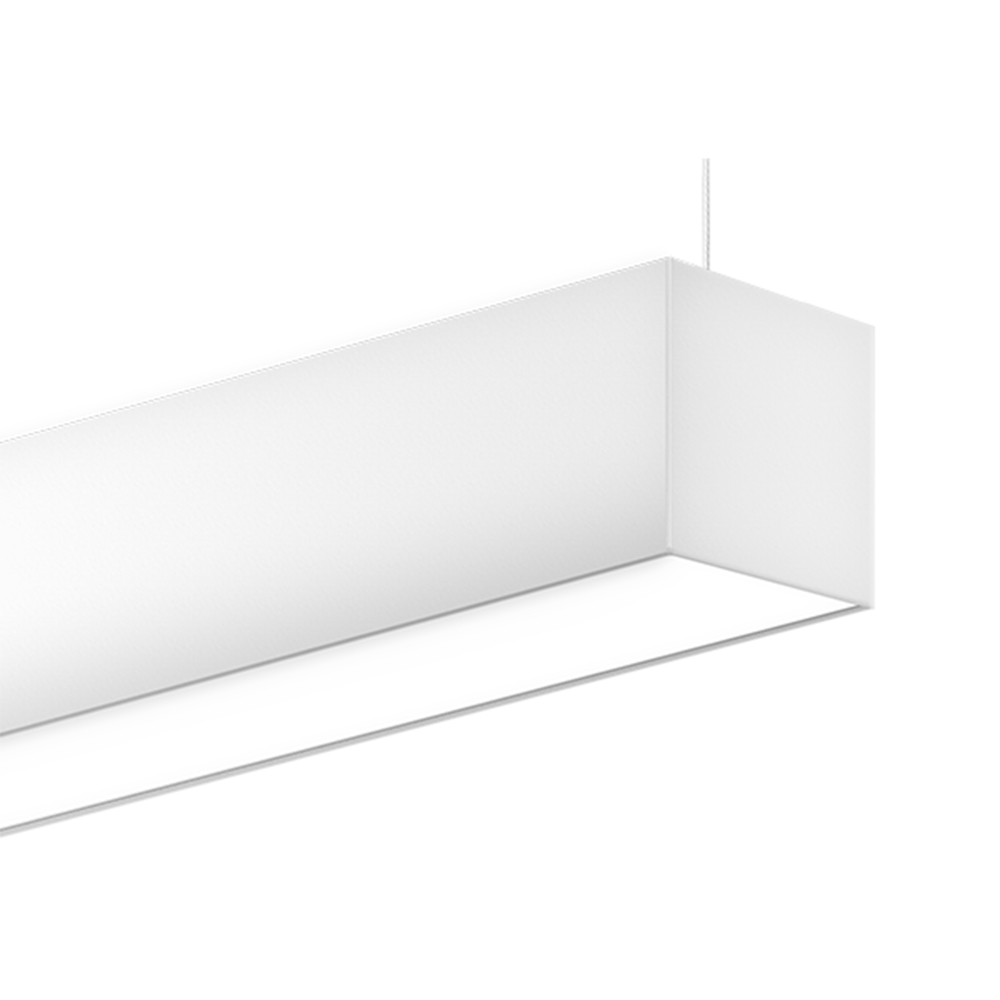

LE 3S Suspended
by American Linear Lighting
Next Day Shipment – 10-Year Warranty
Field Selectable Lumen Output
Field Selectable Color Temperature
Joinable to Form Continuous Linear Run
120/277VAC 0-10V Dimming with Dim to Off Standard
Up to 120.5 Lumens per Watt
Specsheets
Aperture
3 In.
CCT
Field Selectable CCT , 3000K , 3500K , 4000K
CRI
80+ CRI, 80 CRI
Color / Finish
Black , White
Dimming Protocol
0-10 V
Distribution
Direct
Efficacy
120.5 lm/w
Lamp Base
Integrated
Lamp Life
50000 hrs
Lamp Source
LED
Listings
UL , cUL
Lumens / Linear Ft.
600 - 1200 Lm/ft
Materials
Acrylic , Die-Cast Aluminum , Steel
Ratings & Compliance
Damp
Warranty
10 yr
Watts
30.8 w, 31.1 w
