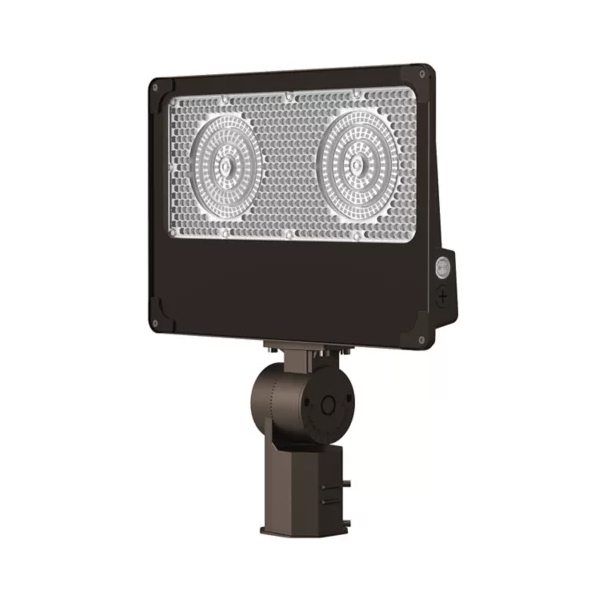

XSF All-Selectable Flood

by Lumark

The Lumark XSF All-Selectable Floodlight delivers powerful, energy-efficient illumination with exceptional flexibility for a wide range of outdoor applications. Featuring 144 configurations in each SKU, this fixture offers 4 selectable wattages from 3,840 to 49,500 lumens, 3 selectable CCTs from 3000K to 5000K, and 3 selectable beam angles including NEMA 4x4, 5x5, and 6x6. With two mounting options included per fixture—Knuckle & Yoke or Slipfitter & Trunnion—installation can be tailored to the needs of the project. A selectable dusk-to-dawn photocontrol with on/off control enhances efficiency and convenience, while 120–347V operation and 80 CRI ensure dependable performance and quality illumination.

Product Page

CCT

3000K , 4000K , 5000K

CRI

Lamp Source

LED

Listings

ULus

Lumens

3001, 4000, 4001, 5000, 5001, 7500, 7501, 10000, 10001, 20000, 20001, 30000, 30001, 50000

Materials

Aluminum

Mounting

Knuckle

Ratings & Compliance

IP65

Voltage

120 V , 208 V , 230 V , 277 V , 347 V

Watts

51, 100, 101, 300
