CORE (Round)

by ALW

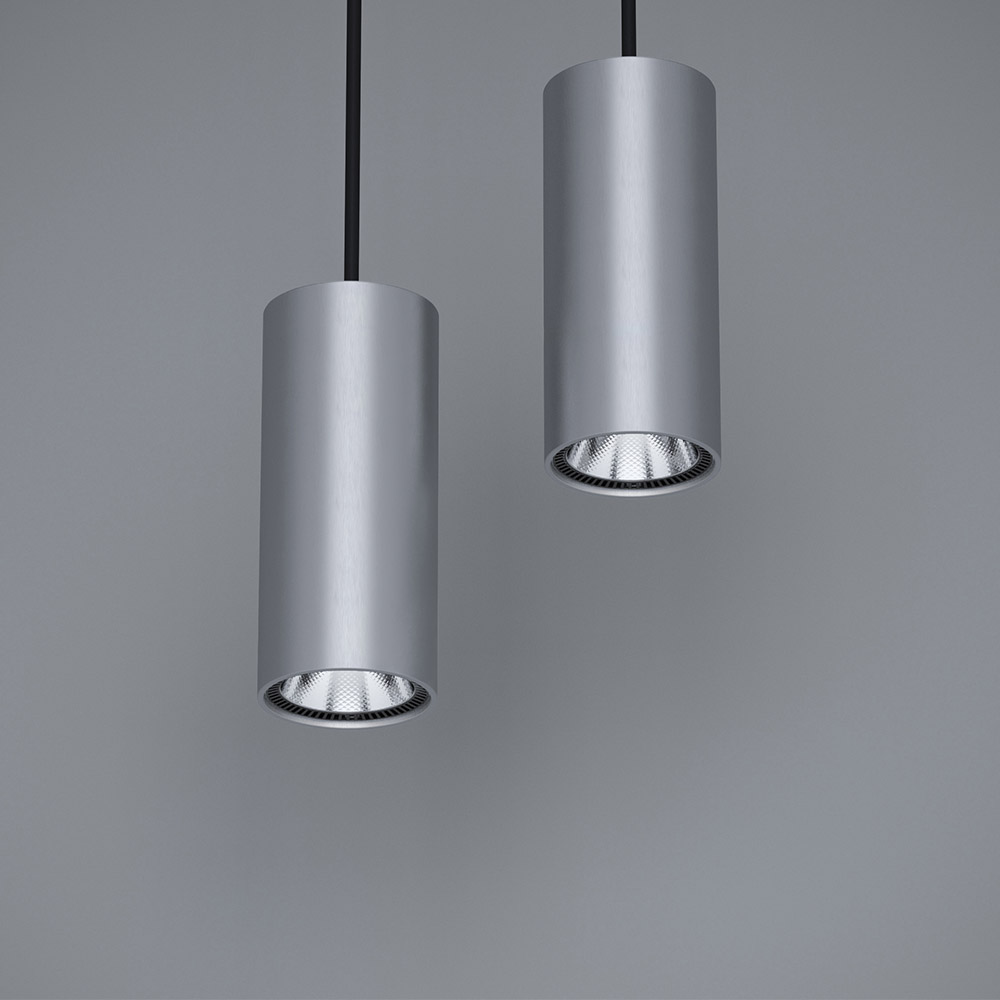

Our CORE cylinders provide aesthetic design forms without compromising on performance. The CORE Round model (formerly CORE LX) features lumen packages up to 6,000 lumens and precise optics ranging from 15° – 80° along with various lens accessories to add versatility to your applications. CORE round cylinders are available with direct and direct/indirect output combinations from 3.5”, 4.5” and 6” apertures by 8.1″ – 15.4″ long shells. These models are available with pendant, yoke, sconce, and surface mounting to fit a variety of spaces.

Specification Sheet Product Page

Specsheets

ALW_Catenary_Design_Guide_200405.pdf ALW-Buy-American-Act.pdf ALW-DMX_RDM-Luminaire-Information-Guide-Rev-1-2_13_23.pdf CORE-3-Round-Direct-PMSY-Spec-Sheet-060622.pdf CORE-3-Round-Direct-Indirect-PS-Spec-Sheet-060622-1.pdf CORE-4-Round-Direct-Indirect-PS-Spec-Sheet-060622-1.pdf CORE-4-Round-Direct-PMSY-Spec-Sheet-060622.pdf CORE-6-Round-Direct-Indirect-PS-Spec-Sheet-060622-1.pdf CORE-6-Round-Direct-PMSY-Spec-Sheet-060622.pdf CORE-4-Round-Direct-PMSY-Spec-Sheet-230213.pdf CORE-4-Round-Direct-Indirect-PS-Spec-Sheet-230209.pdf CORE-3-Round-Direct-PMSY-Spec-Sheet-230209.pdf CORE-3-Round-Direct-Indirect-PS-Spec-Sheet-230209.pdf CORE-6-Round-Direct-PMSY-Spec-Sheet-230213-1.pdf CORE-6-Round-Direct-Indirect-PS-Spec-Sheet-230213.pdf

Photometry

CORE-IES-FILES.zip

CCT

2700K , 3000K , 3500K , 4000K

CRI

90 CRI

Color / Finish

Black , Brass , Brushed Aluminum , Copper , Custom , Dark Bronze , Red , Satin Black , Satin White , Silver Gray , Stainless Steel , Tan , Teal

Dimming Protocol

0-10 V , DALI , DMX , Lutron EcoSystem , Standard Phase

Dimming Range

1% , Non-Dimmable , Step-Dimming

Dynamic LED Color

BIOS SkyBlue , RGB , RGBW , Tunable White

Efficacy

77 lm/w, 82 lm/w, 90 lm/w, 93 lm/w, 121 lm/w, 124 lm/w, 128 lm/w, 132 lm/w, 139 lm/w, 150 lm/w

Lamp Source

LED

Listings

ETL , UL

Lumens

500 Lm, 1000 Lm, 1500 Lm, 2000 Lm, 2500 Lm, 3000 Lm

Materials

Aluminum , Copper , Nylon , Steel

Mounting

Pendant , Suspended , Wall

Ratings & Compliance

Buy American Act (BAA) , Wet

Warranty

11 yr
